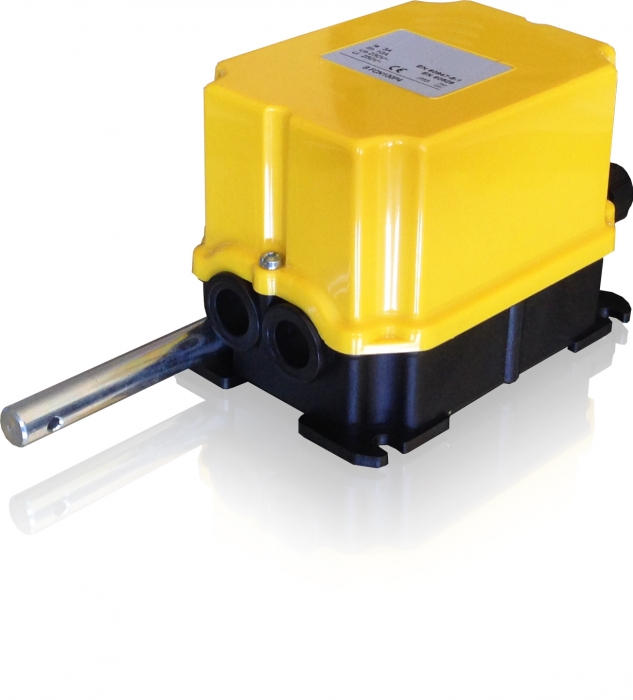

Rotary Limit Switch
- Technical Features
- Standards
- Models
- Accessories
- Spare Parts
- Download
Main Features
- Insulation voltage 250V~
- Maximum operating voltage 250V~
- Black lower casing reinforced nylon
- Yellow cover high mechanical and thermal resistant thermoplastic
- Operating temperature - 20 °C + 60 °C
- Drive worm screw
- Cable entries PG 11
- Protection against contact voltages double insulation
- Weight 460 g (approx.)
Regulation Criteria
Each cam is equipped with its own micrometer regulating screw. Each screw operates exclusively on the cam it is combined with, without interfering mechanically against its adjacent cams.
Contact
Microswitches |
1 NC safety slow type P |
1 NA NO safety 1 NC rapid typeD |
|
2 NC safety progressive type M |
|
1 NA 1 NC safety slow type MD |
|
Insulation Voltage Ui |
250 V~ |
Test Voltage |
200 V~ |
Operating current |
10³ A |
Breaking power |
secondo EN 60947-5-1 |
Mechanical Lifetime |
2x10⁶ man |
Terminals |
with screws |
Performances
AC15 |
Volt |
24 | 48 | 110 | 230 |
Ampere |
10 | 10 | 6 | 3 | |
DC13 |
Volt |
24 | 48 | 110 | 230 |
Ampere |
3 | 1,5 | 1 | 0,5 |
EC Regulations
Directives:
- 98/37/CE
- 2006/95/CE
- CEI EN 60947-1
- CEI EN 60947-5-1
- CEI EN 60204-1
- CEI EN 60529
- CEI EN 60439-1
- IP 55 CEI EN 60529
Standard Executions
Reduction ratios
- 1:7,5 rotations
- 1:15 rotations
- 1:25 rotations
- 1:35 rotations
- 1:50 rotations
- 1:60 rotations
- 1:100 rotations
- 1:140 rotations
- 1:200 rotations
- 1:275 rotations
- 1:400 rotations
- 1:550 rotations
Standard executions are provided with 2 or even 4 contacts. Limit switches with 3 and 5 contacts can also be realized upon request and according to the necessary quantity.
Order Codes
B | FCN | XXX | Y | Z |
Group | Series | Reduction rations | Contact type (P-D-M-MD) | Contact numbers (2-3-4-5) |
- K 5 for 5 Kohm potentiometer - K 10 for10 Kohm potentiometer
- B for 45° level - C for 90° level - D for 180° level
Custom Execution
FCN limit switches can be customized according to the order quantity. Specific customizations:
- shafts cut to measure
- cable entry in frontal or lateral position
- different contacts
- regulation cams with different profiles
- measuring accessories, such as potentiometers or encoders
- customized nameplates
Range
The range of the accessories integrates and completes the limit switches series and facilitates their use according to particular requirements. A series of cog wheels, a male connection and a flexible shaft are the interfaces which have specifically been designed in order to transmit the motion easily from the motor shaft to the limit switch shaft. The fitting of a potentiometer, an encoder or another position sensor close to the micro switch group involves a linear exit in the same box.
Cog Wheels
A series of cog wheels of different diameters allows you an easy joining through pinions and belts.
Available wheels:- Module 5 with 12 teeth
- Module 6 with 11 teeth
- Module 8 with 12 teeth
- Module 10 with 12 teeth
- Module 14 with 10 teeth
Attachment Flange
The flange interface allows the limit switch to be fixed without the special fixing plate.
Potentiometer
The insertion of a potentiometer near the microswitch group involves a linear exit in the same box.
- Ensure that the locking screw is loosened.
- Set the desired resistance value by means of the instruments by rotating the regulating ring clockwise to reduce it, or anti-clockwise to increase it.
- Tighten the lock screw
IMPORTANT: The potentiometer follows the cams rotation direction.
Features
Potentiometer Electrical Features | Potentiometer Mechanical Features | ||
Total Resistance Rt | 5-10 K | Operating Temperaure | -40°C +125°C |
Rt tolerance at 20°C | +-20% | Dimensions | Diam. 22,2 mm |
Maximum power dissipated at 70°C | 0,3 W | Regulation | See above |
Actual electric angle AEA | 340° +-5% | Mechanical Angle | 360° continuous |
Useful electric angle | AEA -3° | Shaft | Stainless-sttel, with cut |
Iindipendent linearity | +-2% | Shaft guide | CBush bearing |
Output voltage stability | 0,1% | Cursor | Precision contact |
Cursor current (in continuous duty) | 1 mA max | Mounting | Sleeve |
Contact load resistance | > 1000 x Rt | Terminals | Turret |
Insulation resistance | 1000 M - 550 Vcc | Fixing accessories | Nut and washer |
Dielettrica rigidity | >500V eff - 50 hz | Useful life | 5x10⁶ cycles |
Spare Parts and Accessories
SPARE PARTS | ACCESSORIES | ||||
Position | Code | Description | Position | Code | Description |
1 | B50454 | Cover 2-3 micro | 4 | BMOD5FC | Cog wheel mod 5 Z12 |
B50442 | Cover 4 micro | BMOD6FC | Cog wheel mod 6 Z11 | ||
B50447 | Cover 5 micro | BMOD8FC | Cog wheel mod 8 Z12 | ||
2 | BLEVFCNA | White cam A | BMOD10FC | Cog wheel mod 10 Z12 | |
BLEVFCNB | Grey cam B | BMOD14FC | Cog wheel mod 14 Z10 | ||
BLEVFCNC | Red cam C | 5 | BINNFC | Male connection | |
BLEVFCND | White cam D | 6 | BAFLESFC | Flexible Shaft | |
3 | BFCNAPINT | Contact 1 NC AP slow (P) | 7 | BFLANFCN | Attachment flange |
BFCNDINT | Contact 1 NA 1 NC quick (D) | 8 | - | Potentiometer | |
BAPO2PRFC | Contact 2 NC progressive slow (M) | 9 | - | Encoder (on request) | |
BAP11FC | Contact 1 NA 1 NC slow (MD) |
