Heated
Wind speed measure anemometer for low temperature and ice
The heating system of which the device is fitted, ensure the normal operation and even in the presence of snow and ice. The
ANEMO5H25, can detect the wind speed even under extreme climatic
conditions. The integrated heating system, in fact, prevents the
formation of snow and ice deposits on top of the appliance, ensuring the
smooth operation up to a minimum of temperature equal to -25 ° C.
Also
for this reason, it is the optimal solution for all those applications
relating to the wind speed detection in extreme conditions. Easy
to use and small size, is particularly suited to be employed as a

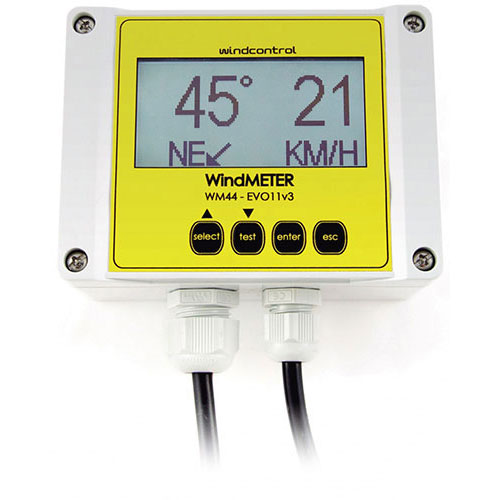

transducer for our WM44-P control unit. However, thanks to its great
versatility, it is easily adaptable to a wide range of instruments for
the visualization and control.
It can be connected directly to PLC and / or market electronic, tachometers and WM44P as the model of our product range.
- Technical Features
- Features
- Standards
- Display
- Optional Items
- Download
Mechanical Features
- Material PA + FV
- Bearings stainless steel X65Cr13
- Type of connection connector M12
- Weight 145g

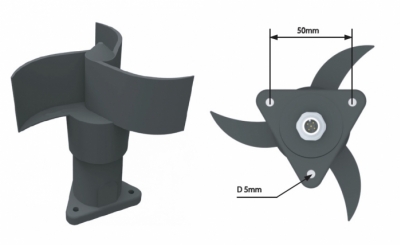

- Dimensions 125x155mm
- Storage Temperature -35°C+80°C
- Working temperature -20°C+60°C
- Accuracy +-3%
- Linearity +-3%
Electrical Features
- Power supply 15...24 Vdc
- Consumption with heater ta<6°C (+-3°C)
- Average consumption with heater ta<6°C (+-3°C) <17W
- Maximum current 1,8 A @ 24 Vdc, 1,2 A @ 15 Vdc
- Output analogue (4-20 mA)
- Maximum connectable impedance <600 Ω @ 24 Vdc, <300 Ω @ 15 Vdc
- Range 3-120 Km/h, 3-180 Km/h
- Starting speed 8 Km/h
- Survival speed 200 Km/h
- Accuracy 1 Km/h (3-15 Km/h), 3% (15-120 Km/h), 3% (15-180 Km/h)

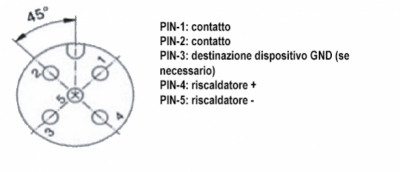

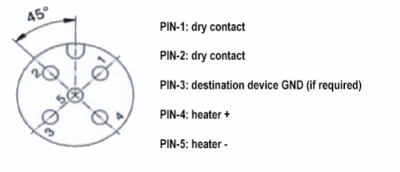

Wiring Diagram
Heated model wiring.
Regulations
Protection:
- IP65 (UNE 20324:1993)
- EN 61000-6-2:2001
- EN 55022:2001, Class B

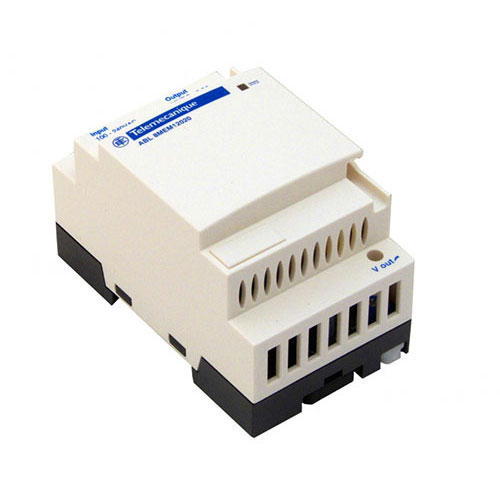

Stabilized Power Supply
220Vac / 24 Vdc - 2A
